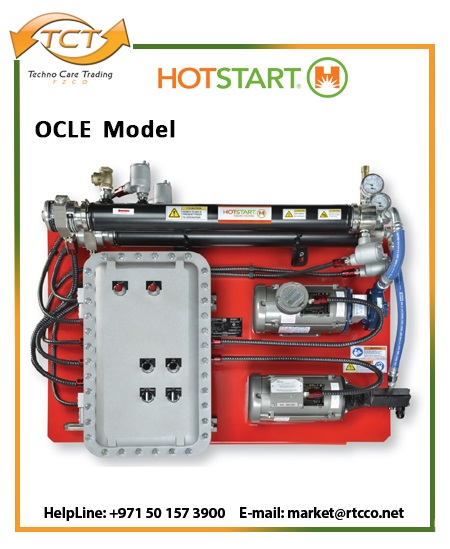

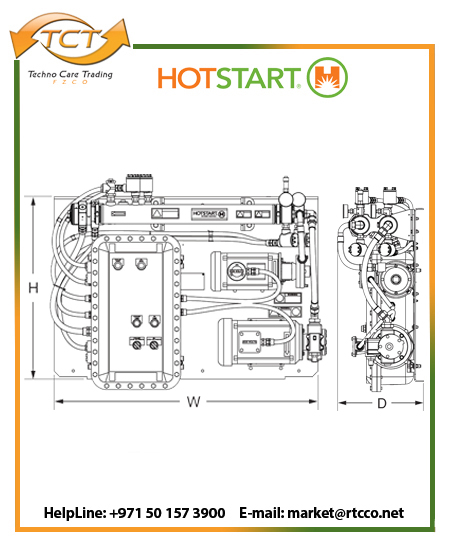

OCLE Model
د.إ0.000
Heating Fluid: Oil/Coolant
Heat Power: Oil 2.5 – 12 kW / Coolant 6 – 36 kW
Voltage Range: 208, 240, 440 – 480, 575 – 600 V
Temperature Controller: Adjustable 32 – 212 °F (0 – 100 °C)
Temperature Setting: Oil 105 °F (40 °C) / Coolant 120 °F (50 °C)
High-Limit Temperature Control: Adjustable 32–212 °F (0 – 100 °C)
High-Limit Temperature Setting: 195 °F (90 °C)
Fluid Capacity: 1 gal (3.8 L)
Pump Power: Oil 1 – 3 Hp (0.75 – 2.25 kW) Coolant 1 Hp (0.75 kW)
Maximum Pressure: 100 psi (690 kPa)
HOTSTART’s OCLE is a complete oil and coolant heating system for North American oil and gas applications. The OCLE heats oil capacities up to 355 gal. (1350 L) heats coolant in engines up to 18,300 CID (300 L) depending on application and ambient temperature. The OCLE provides uniform heating to the oil throughout the engine oil sump and external piping, enhancing compressor availability. The unit also provides uniform coolant heating to the engine, reducing condensation in the engine block and cylinders that occurs with temperature variation
| Product Type | Genset |
|---|---|
| Combined Coolant & Oil Heater | Coolant & Oil Heating System |
| Power (Oil Heater) | 12 KW, 2.5 KW |
| Power (Heater) |
