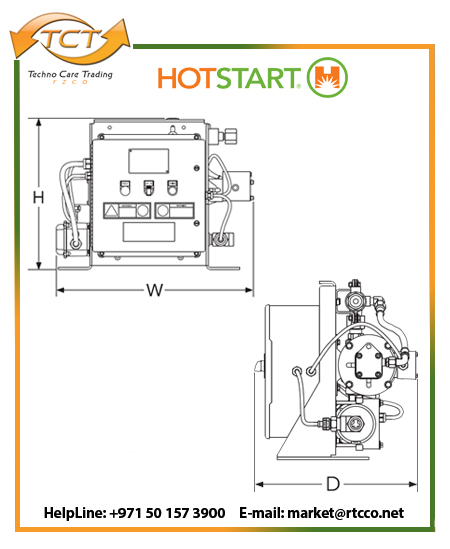

OCSM Model
د.إ0.000
- Primary Heating Fluid: Engine Coolant
- Secondary Heating Fluid: Engine Oil
- Heat Power: 6, 9, 12 kW
- Voltage Range: 1 or 3 Phase 208 – 600V (50 or 60 Hz)
- Temperature Controller: Fixed 100 – 120 °F (38 – 49 °C)
- High-Limit Temp. Control: Fixed 165 – 205 °F (74 – 96 °C)
- Fluid Capacity: Coolant – 0.7 gal (2.6L)
- Oil – 0.2 gal (0.8L)
- Pump Power: Coolant – 0.04 Hp (0.03 kW)
- Oil – 0.33 Hp (0.25 kW)
The HOTSTART OCSM is a multi-use heating system that heats a combination of liquids simultaneously. The system can heat coolant and lube oil or coolant and fuel for engines up to 75L displacement.
The OCSM includes a coolant heating chamber, coolant and lube oil pumps, a coolant-to-oil heat exchanger and all required controls.
| Product Type | Genset |
|---|---|
| Power (Heater) | |
| Combined Coolant & Oil Heater | Coolant & Oil Heating System |
