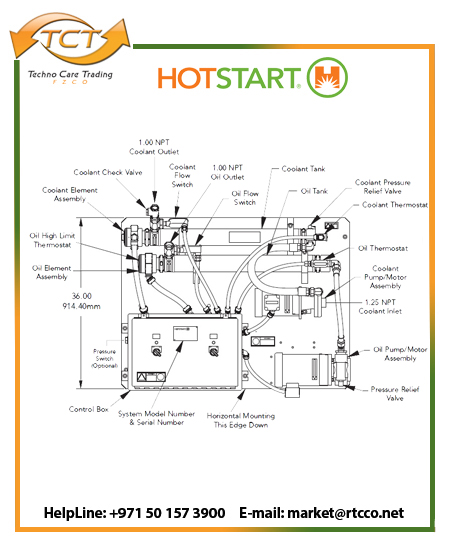

The HOTSTART line of coolant/lube oil combination heating systems combines the benefits of coolant heating and oil heating into one pre-wired, pre-assembled dual heating package. Circulating heated coolant and lube oil throughout the engine ensures optimum starting temperatures and oil viscosity while reducing condensation. Maintaining jacket water temperatures ensures easy starting and allows engines to go to full power without needless idling. Circulating heated coolant also warms the pre-ignition chamber on lean-burn engines.
This results in extended spark plug life and a reduction of harmful emissions during engine start-up. The COL, a watertight system by design, is engineered to function in wet or damp locations; ensuring safe, electrical operation.
COL Model
د.إ0.000
COL System Features
Weathertight components rated NEMA 12
Viton mechanical seal pumps for extended seal life and temperatures to 350°F
Flow detection switches for fail-safe operation
Pressure switch for automatic operation
Universal mounting for varied mounting configurations
100° to 120°F thermostat for coolant and 80° to 100°F oil thermostat
On/Off switch for coolant and oil heating operations
Product Type | Genset |
---|---|
Power (Heater) | |
Combined Coolant & Oil Heater | Watertight Circulating Heating System |
QR Code
Related Products
- desktop-columns-3 tablet-columns-2 mobile-columns-1
-
OCSM Model
د.إ0.000Availability: In stockOut of stock
- Primary Heating Fluid: Engine Coolant
- Secondary Heating Fluid: Engine Oil
- Heat Power: 6, 9, 12 kW
- Voltage Range: 1 or 3 Phase 208 – 600V (50 or 60 Hz)
- Temperature Controller: Fixed 100 – 120 °F (38 – 49 °C)
- High-Limit Temp. Control: Fixed 165 – 205 °F (74 – 96 °C)
- Fluid Capacity: Coolant – 0.7 gal (2.6L)
- Oil – 0.2 gal (0.8L)
- Pump Power: Coolant – 0.04 Hp (0.03 kW)
- Oil – 0.33 Hp (0.25 kW)
-
CSM Style B
د.إ0.000Availability: In stockOut of stock
HOTflow™ model CSM was developed to preheat diesel and gas engines for stationary land power, marine, large mining and construction equipment.
-
OSE Model
د.إ0.000Availability: In stockOut of stock
Heating Fluid: Oil
Heat Power: 1.5, 2.5 kW
Voltage Range: 480V/60Hz/3ph (Contact HOTSTART for other voltage requirements)
Temperature Controller: Adjustable 32°-212°F (0°-100°C)
Temperature Setting: 105°F (40°C)
High-Limit Temperature Control: Adj. 32°-212°F (0°-100°C)
High-Limit Temperature Setting: 195°F (90°C)
Fluid Capacity: 0.6 gal (2.2L)
Pump Power: 0.75, 2Hp (0.56, 1.5 kW) -
EE Model
د.إ0.000Availability: In stockOut of stock
3 Range Model:
Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C
Adjustable 90° – 130° (32°C – 54°C)
-
OCLA System
د.إ0.000Availability: In stockOut of stock
SPECIFICATIONS
Heating Fluid: Oil/Coolant
Heat Power: Oil 2.5 – 12 kW / Coolant 6 – 36 kW
Voltage Range: 230, 400 V
Temperature Controller: Adjustable 0 – 100 °C (32 – 212 °F)
Temperature Setting: Oil 40 °C (105 °F) / Coolant 50 °C (120 °F)
High-Limit Temperature Control: Adjustable 0 – 100 °C (32 – 212°F)
High-Limit Temperature Setting: 90 °C (195 °F)
Fluid Capacity: 3.8 L (1 gal)
Pump Power: Oil 0.75 – 2.25 kW (1 – 3 Hp)
Coolant 0.75 kW (1 Hp) -
OSM Model
د.إ0.000Availability: In stockOut of stock
Primary Heating Fluid: Engine Oil
Heat Power: 1, 2, 3 kW
Voltage Range: 1 or 3 Phase 120-690V (50 or 60Hz)
Temperature Controller: Fixed 80°-100°F (27°-38°C)
High-Limit Temp. Control: Fixed 165°-205°F (74°-96°C)
Fluid Capacity: Oil – 0.6 gal (2.2L)
Pump Power: 0.33 Hp (.25 kW) -
WL Model
د.إ0.000Availability: In stockOut of stock
HOTSTART tank style engine heaters were developed to pre-heat diesel and gas engines for stationary land power, heavy duty mobile equipment, marine and offshore equipment.
-
CSM Style A
د.إ0.000Availability: In stockOut of stock
HOTflow™ model CSM was developed to preheat diesel and gas engines for stationary land power, marine, large mining and construction equipment.
-
Battery Wraps
د.إ0.000Availability: In stockOut of stock
Prolong the life of your battery with HOTSTART thermal battery wraps with or without thermostat.
• Durable, fire-retardant vinyl cover that resists oils and acids.
• All standard battery pads and battery wraps come with 6’ (1.8m) grounded cord and plug.
• Fast, easy installation.
• Boosts battery cranking power as much as 75%.
