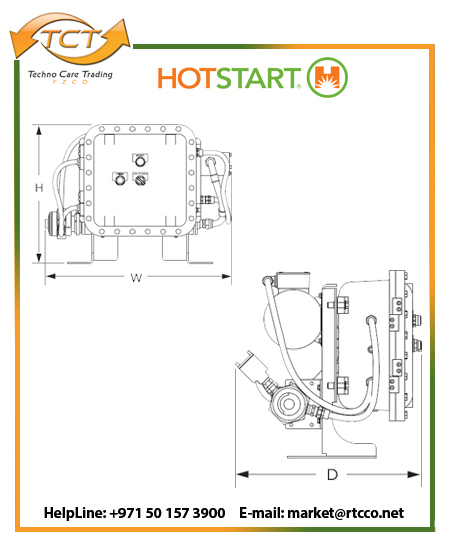

OSE Model
د.إ0.000
Heating Fluid: Oil
Heat Power: 1.5, 2.5 kW
Voltage Range: 480V/60Hz/3ph (Contact HOTSTART for other voltage requirements)
Temperature Controller: Adjustable 32°-212°F (0°-100°C)
Temperature Setting: 105°F (40°C)
High-Limit Temperature Control: Adj. 32°-212°F (0°-100°C)
High-Limit Temperature Setting: 195°F (90°C)
Fluid Capacity: 0.6 gal (2.2L)
Pump Power: 0.75, 2Hp (0.56, 1.5 kW)
HOTSTART’s OSE is a complete oil heating system designed to heat and circulate oil in small compressors. The OSE is also designed to prelube the compressor frame in applications with flow requirements up to 11GPM.
The heating system pulls oil from the compressor sump using a positive displacement oil pump. Oil is heated and circulated through the compressor lubricating system.
This eliminates the need for a supplemental prelube pump. Prelubing compressors with heated oil reduces condensation and supplies consistent pressure to the lubricating system with minimal variation in viscosity.
Compressors can benefi t from prelubing in both cold climates and high humidity climates where temperature variations can result in damaging condensation.
| Product Type | Genset |
|---|---|
| Oil Heater | |
| Power (Heater) |
QR Code
Related Products
- desktop-columns-3 tablet-columns-2 mobile-columns-1
-
CSM Style B
د.إ0.000Availability: In stockOut of stock
HOTflow™ model CSM was developed to preheat diesel and gas engines for stationary land power, marine, large mining and construction equipment.
-
OSX Model
د.إ0.000Availability: In stockOut of stock
Heating Fluid: Oil
Heat Power: 1.5, 2.5 kW
Voltage Range: 240V/60Hz/1ph, 480V/60Hz/3ph (Contact TCT for other voltage requirements)
Temperature Controller: Adjustable 32°-212°F (0°-100°C)
Temperature Setting: 105°F (40°C)
High-Limit Temperature Control: Adj. 32°-212°F (0°-100°C)
High-Limit Temperature Setting: 195°F (90°C)
Fluid Capacity: 0.6 gal (2.2L)
Pump Power: 1, 2Hp (0.75, 1.5 kW) -
CL Model (Watertight)
د.إ0.000Availability: In stockOut of stock
Pressure switch or relay for automatic operation
Universal mounting for varied mounting configuration
100° to 120°F fixed thermostats
On/Off switch for manual control
Watertight components rated NEMA 12
Viton mechanical seal pumps for extended seal life and temperatures to 350°F
External motor protective switch reset button -
OCLA System
د.إ0.000Availability: In stockOut of stock
SPECIFICATIONS
Heating Fluid: Oil/Coolant
Heat Power: Oil 2.5 – 12 kW / Coolant 6 – 36 kW
Voltage Range: 230, 400 V
Temperature Controller: Adjustable 0 – 100 °C (32 – 212 °F)
Temperature Setting: Oil 40 °C (105 °F) / Coolant 50 °C (120 °F)
High-Limit Temperature Control: Adjustable 0 – 100 °C (32 – 212°F)
High-Limit Temperature Setting: 90 °C (195 °F)
Fluid Capacity: 3.8 L (1 gal)
Pump Power: Oil 0.75 – 2.25 kW (1 – 3 Hp)
Coolant 0.75 kW (1 Hp) -
SB Model
د.إ0.000Availability: In stockOut of stock
3 Range Model:
Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C)Adjustable 90° – 130°F (32°C – 54°C)
-
CLM Model
د.إ0.000Availability: In stockOut of stock
-
Heating Fluid: Engine coolant (50% glycol/50% water
Power: 27-36kW
Rated Voltage: 400V/50Hz/3ph, 440V/60Hz/3ph, 690V/50&60Hz/3ph
Temperature Controller: Adjustable 32°-212°F (0°-100°C)
Temperature Setting: 120°F (50°C)
High Limit Temperature Control: Adj. 32°-212°F (0°-100°C)
High Limit Temperature Setting: 195°F (90°C)
Fluid Capacity: 0.9 gal (3.5L)
Pump Power: 0.75Hp (0.55kW)
-
-
Immersion Heater
د.إ0.000Availability: In stockOut of stock
TEMPERATURE RANGE CONTROL ON OFF 60°F (16C) 80°F (27C) HLC-6 80°F (27C) 100°F (38C) HLC-8 100°F (38C) 120°F (49C) HLC-10 ELECTRICAL RATING 15 Amps at 120 Vac 10 Amps at 240 Vac 10 Amps at 277 Vac -
SL Model
د.إ0.000Availability: In stockOut of stock
3 Range Model:
Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C)
Adjustable 90° – 130°F (32°C – 54°C)
-
WF 2073 Water Filter
د.إ0.000Availability: In stockOut of stock
WF2073
Media Type: Cellulose 60 23
Micron Rating: 60
Coolant Additive: 23 Units
Overall Height inch (mm): 5.43 (137.92)
Thread Size: 11/16-16 UN- 2B
