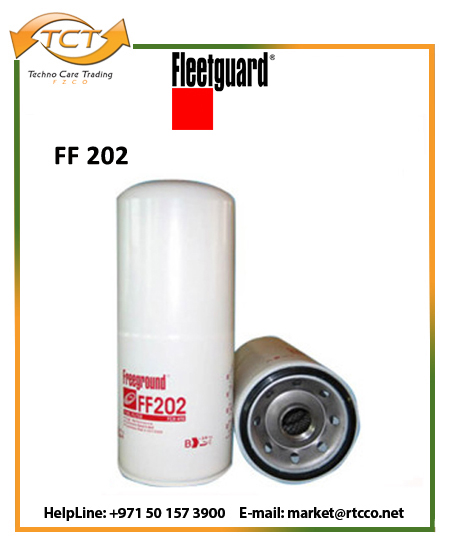

| FF 202 | |
| Overall Height | 287.27 mm (11.31 in) |
| Largest OD | 116.08 mm (4.57 in) |
| Seam OD | 120.27 mm (4.735 in) |
| Gasket OD | 110.74 mm (4.36 in) |
| GASKET INSIDE DIAMETER | 98.17 mm (3.865 in) |
| Thread Size | 1 1/4-12 UNS-2B |
| Standpipe | NO |
| EFFICIENCY, TWA BY SAE J 1985 | 96 % (96 %) |
| MICRON RATING BY SAE J 1985 | 20 micron (20 micron) |
| Product Type | Genset |
|---|---|
| Filter Type | Fuel Filter |
QR Code
Related Products
- desktop-columns-3 tablet-columns-2 mobile-columns-1
-
TPS Model
د.إ0.000Availability: In stockOut of stock
- Application:
The TPS engine pre-heater is designed to pre-heat diesel and gas engines in genset, heavy duty mobile equipment, marine and industrial applications.
3 Range Model:
Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C)Adjustable Thermostat 90–130 °F (32–54 °C)
Voltage Range: 120 and 240 V -
-
-
Silicone Hot Pad
د.إ0.000Availability: In stockOut of stock
Easy peel and stick application
Etched foil heating element for optimal heat transfer and long life.
Durable silicone/fiberglass cover resists abrasion.
120 V models are assembled with a standard 6’ (1.8m) HPN cord and plug.
240 V models include 6’ (1.8m) HPN cord without plug. -
-
CL Model (Watertight)
د.إ0.000Availability: In stockOut of stock
Pressure switch or relay for automatic operation
Universal mounting for varied mounting configuration
100° to 120°F fixed thermostats
On/Off switch for manual control
Watertight components rated NEMA 12
Viton mechanical seal pumps for extended seal life and temperatures to 350°F
External motor protective switch reset button -
CTM Model
د.إ0.000Availability: In stockOut of stock
HOTflow™ model CTM was developed to preheat diesel and gas engines for stationary land power, marine and construction equipment.
-
-
CMM Model
د.إ0.000Availability: In stockOut of stock
- Heating Fluid: Engine coolant (50% glycol/50% water)
- Power: 12 – 24kW
- Rated Voltage: 400V/50Hz/3ph, 440V/60Hz/3ph, 690V/50&60Hz/3ph
- Temperature Controller: Adjustable 32°-212°F (0°-100°C)
- Temperature Setting: 120°F (50°C)
- High Limit Temperature Control: Adj. 32°-212°F (0°-100°C)
- High Limit Temperature Setting: 195°F (90°C)
- Fluid Capacity: 0.8 gal (3.0L)
- Pump Power: 0.5Hp (0.37kW)
