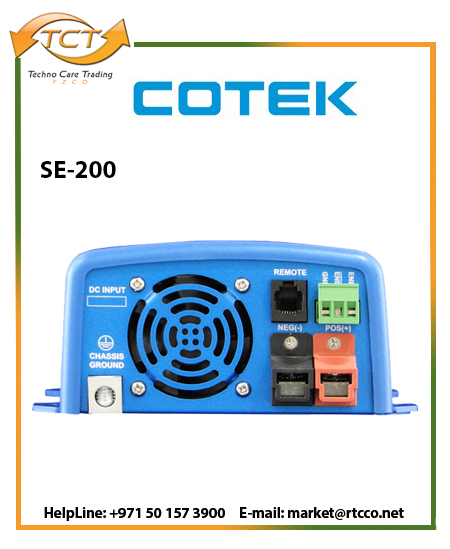

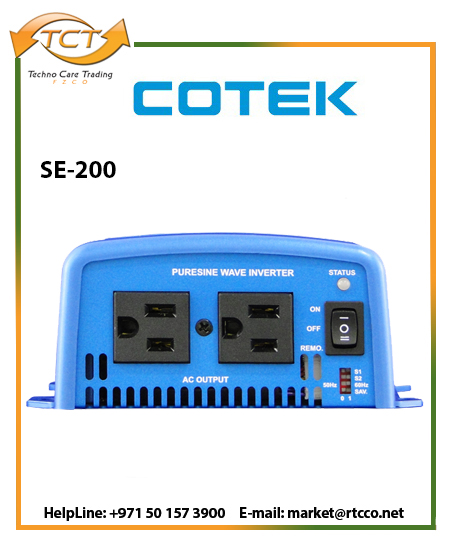

SE-200
د.إ0.000
SE models are now available from 200 watts to more powerful models of pure sine-wave power inverter. There are several new features such as power-saving mode, additional protections and wider working temperatures.
The SE series are designed carefully considering technical and commercial requirements of customers. These products can supply reliable and high-quality power to different types of loads.
Product Technical Data |
|
| Nominal Power (VA) | 200 |
| AC Output Voltage(V) | 200/220/230/240±5% |
| Over Rated Power (<3 min.)(VA) | 230 |
| Peak Power (<3 sec.)(VA) | 250 |
| Output Waveform | Pure sine |
| THD | <3% |
| Weight(kg) | 1.6 |
| Frequency(Hz) | 60/50 |
| Operating Temperature | -20℃ ~+60℃ |
| Dimensions(mm) | 150*68*187 |
| Certificates | EN60950-1, CE,ISO7637-2 |
| Pure Sine Wave | SE Series |
|---|---|
| DC Voltage | 12 Volts, 24 Volts, 48 Volts |
| Features | Power Saving Mode |
| Product Type | Renewable Energy |
