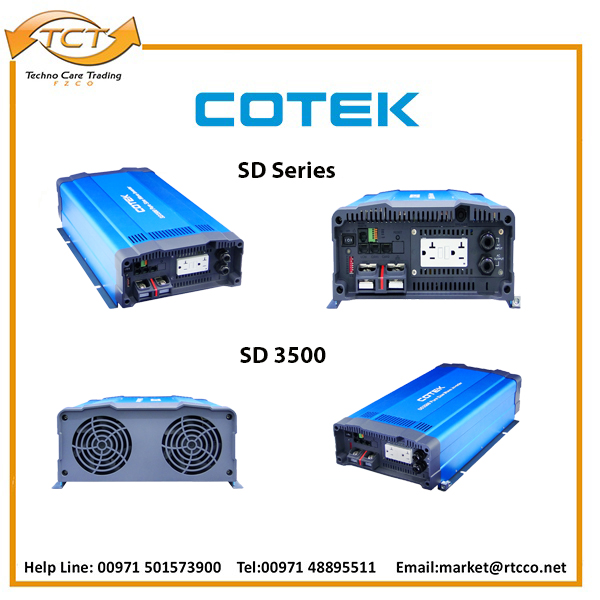

SD-3500
د.إ0.000
The SD series is a pure sine wave (THD < 3%) inverter designed especially for the most demanding mobile and off-grid applications. SD series can be used for up to 15 redundancy and the ability of enlarge the capacity (Users can install maximum 15 units of inverters together in parallel in order to provid the power expansion).
Product Technical Data |
|
| Nominal Power (W) | 3500 |
| AC Output Voltage(V) | 200/220/230/240 |
| Voltage Regulation | 3% |
| Surge Power (<0.2s) | 6000 |
| Output Waveform | Pure sine |
| THD | <3% |
| Weight(kg) | 21 |
| Frequency(Hz) | 60/50 |
| Operating Temperature | –20 ~+40℃ |

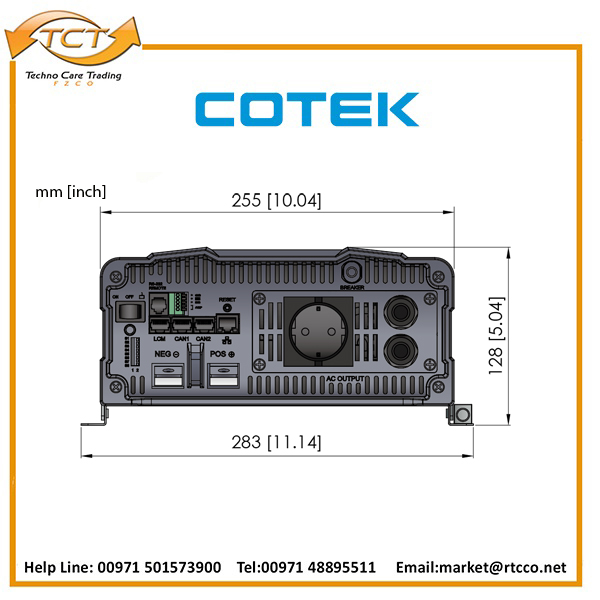

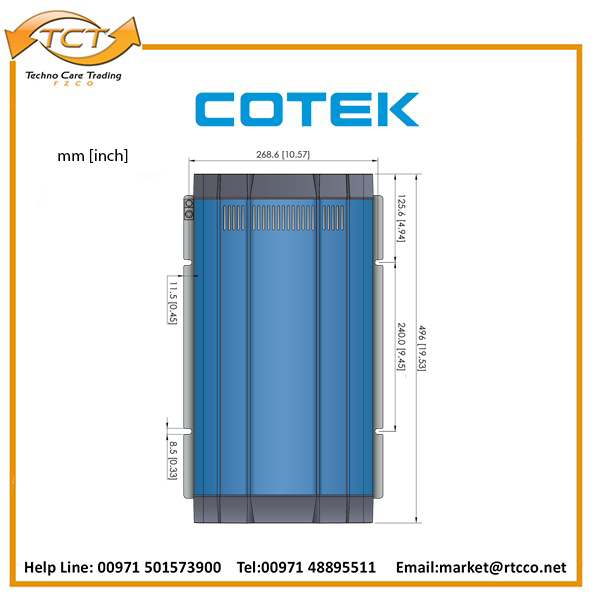

| Dimensions(mm) | 283*128*496 |
| Certificates | EN60950-1, CE,ISO7637-2 |
| Pure Sine Wave | SD Series |
|---|---|
| Product Type | Renewable Energy |
