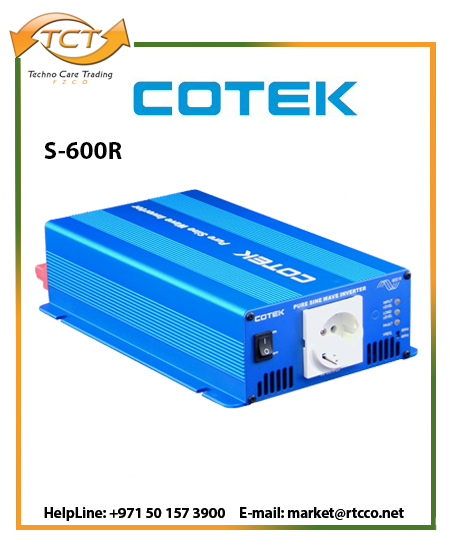

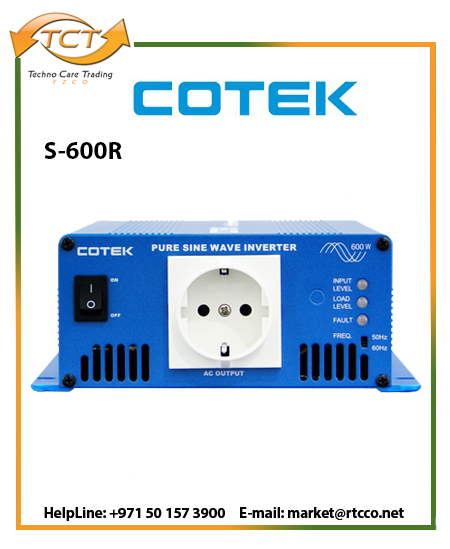

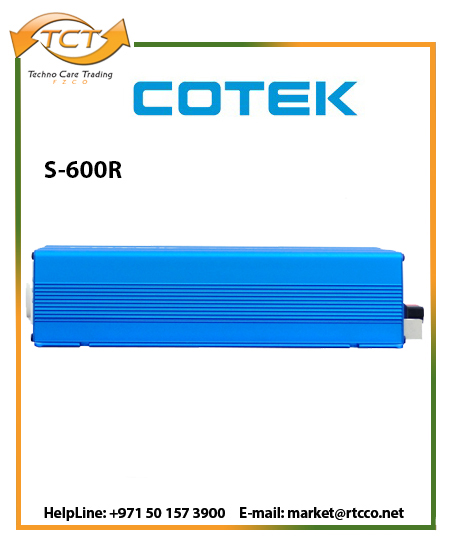

S-600R
د.إ0.000
The S series off-grid inverters are available in different DC voltages from 150 to 1500 watts, designed for industrial applications in a way that the inverter is capable of managing heavy duty and loads. Best performance of this series of inverters occur when a supplementary battery charger also operates in the system.
Product Technical Data |
|
| Nominal Power (VA) | 600 |
| AC Output Voltage(V) | 220/230/240 |
| Voltage regulation | 5% |
| Surge Power (<3 sec.)(VA) | 800 |
| Output Waveform | Pure sine |
| THD | <3% |
| Weight(kg) | 3.38 |
| Frequency(Hz) | 60/50 |
| Operating Temperature | 0℃ ~+40℃ |
| Dimensions(mm) | 179*72*273 |
| Certificates | EN60950-1, CE,FCC,E13,ISO7637-2 |
| Product Type | Renewable Energy |
|---|---|
| Pure Sine Wave | S Series |
| Features | Heavy Duty |
| DC Voltage | 12 Volts, 24 Volts, 48 Volts |
