DC Surge Arrester FSP-D40 2Pole

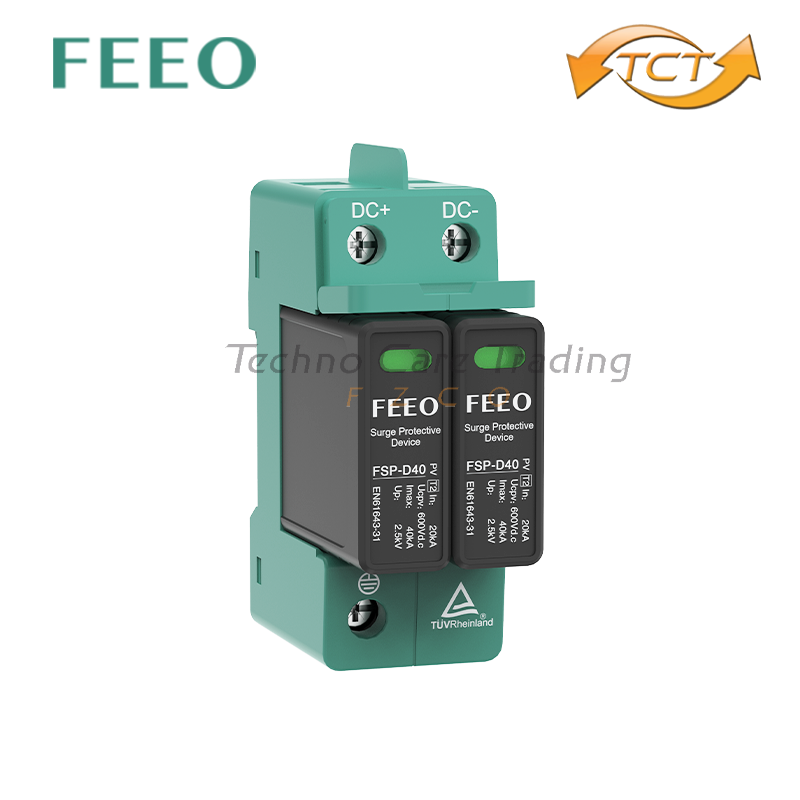

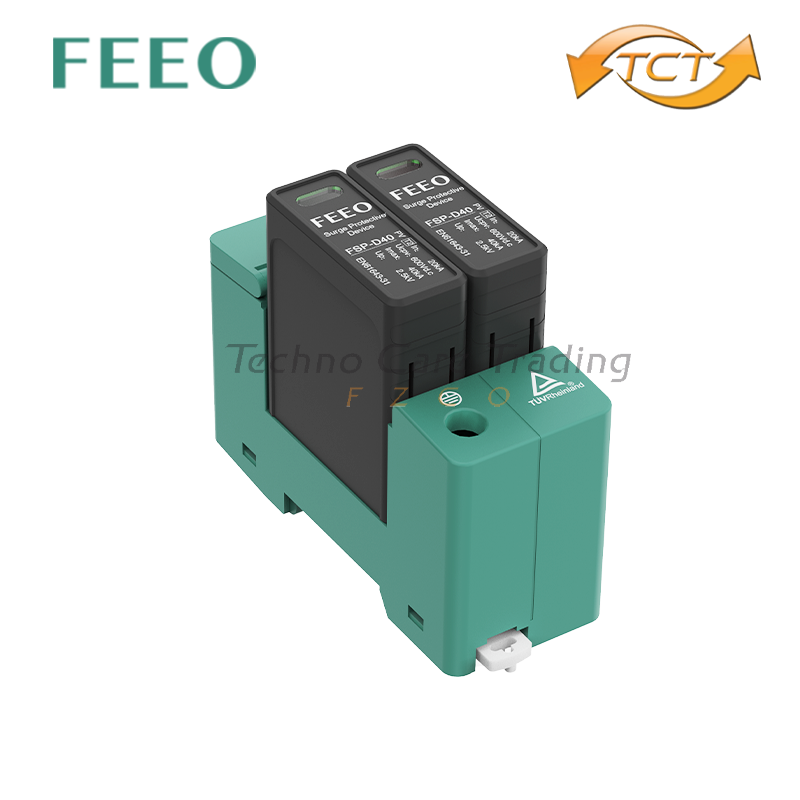

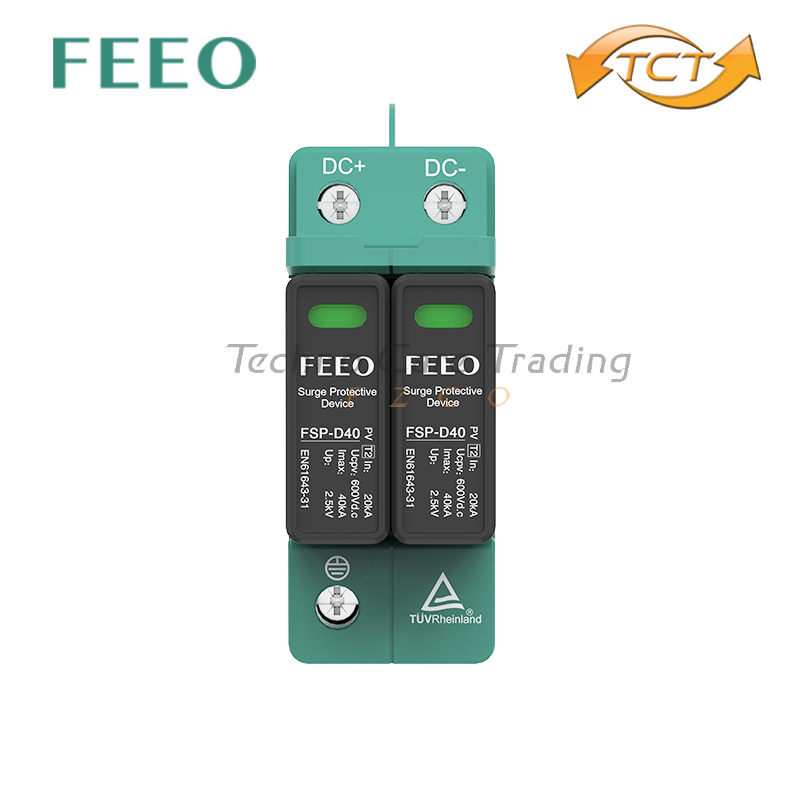

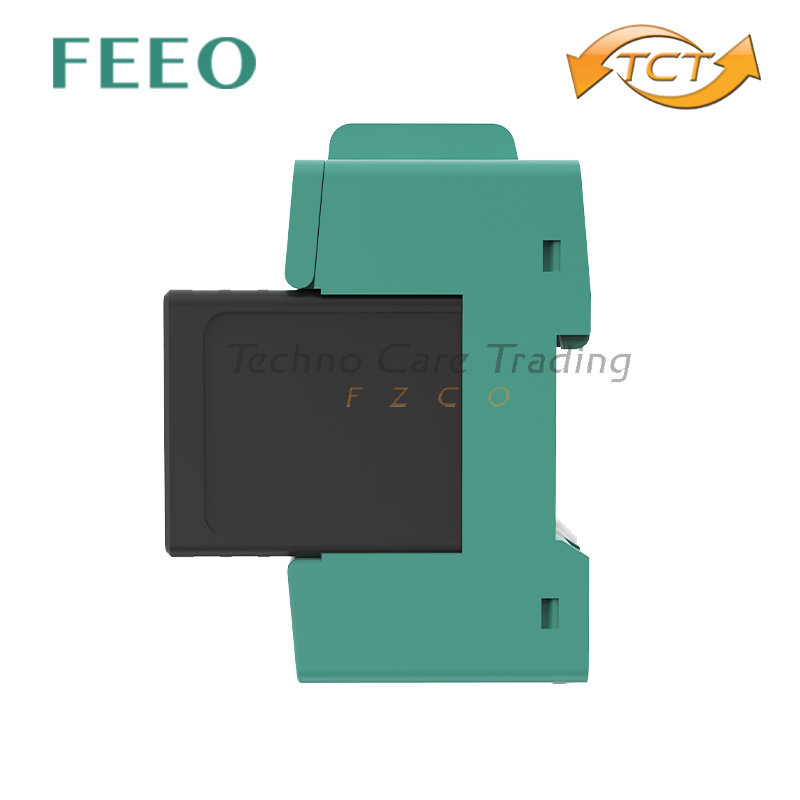

FEEO 2P FSP-D40 series of DC Surge Arrester(DC SPD) is designed for solar system. Discharge current range from 20KA to 40KA. Rated of 2Poles can reach 600VDC,even can be customized to 12VDC,24VDC,48VDC.
- Uoc max (VDC ): 600V DC
- Uc ( VDC ): 600V DC
- In (8 /20 )us ( kA ): 20kA
- lma x (8 /20 )us ( kA ): 40kA
- Up ( kV ): 2kV
- Working Temperature:-30℃ ~ +70℃
- Relative humidity:30%~90 %
- Size (mm )(W x H x L ):36*90*67.6mm
- Weight (gr): 240gr
